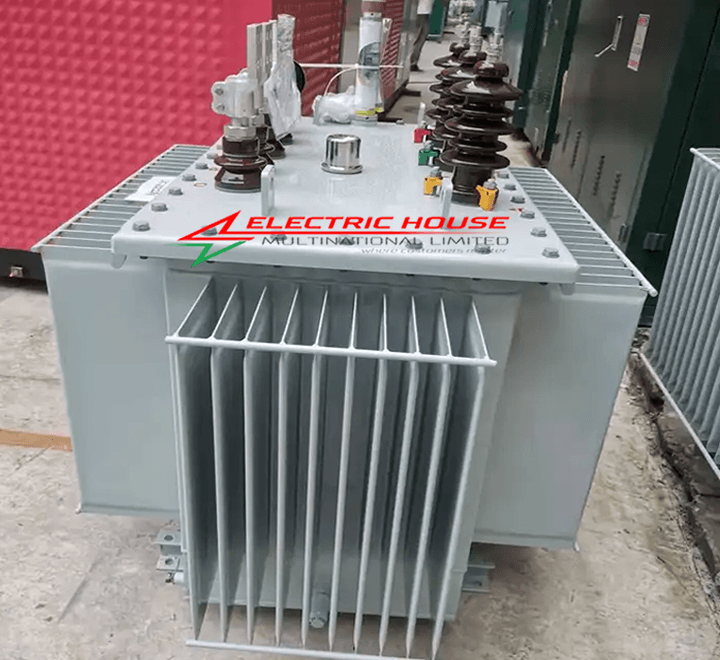

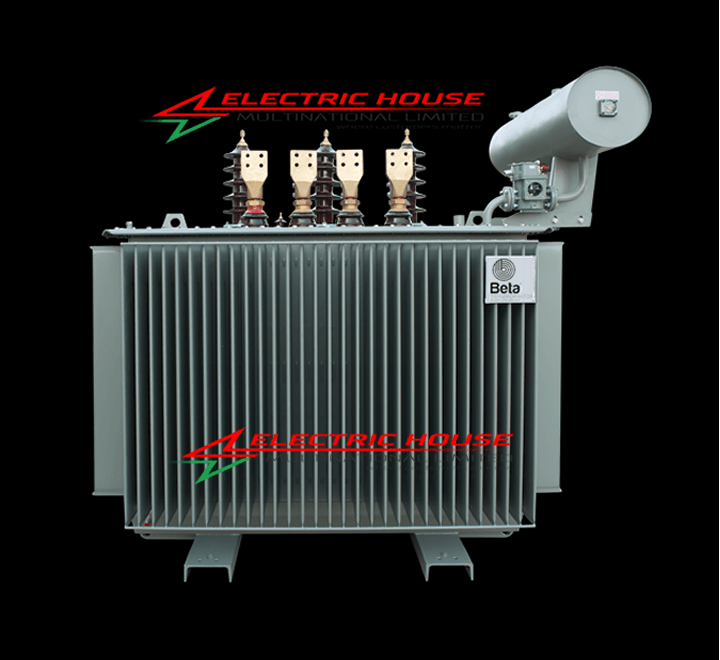

300 kVA – 33kv Oil-Filled Power Distribution Transformer 3 Phase

Product name: Liquid-Filled Ground mount Transformer; 3PH, 300 kVA, HV 33000D , LV 400yn
Country of origin: Turkey
Rated power: 300 [kVA]
Insulation Liquid :Mineral Oil (TAURUS)
High voltage: 33000 [V]
High voltage tappings (DETC):+2 / -2 x 2.5%
Low voltage at no load 400 [V]
High voltage insulation level:LI 170 / AC 70 / Um 36 [kV]
Low voltage insulation level:LI – / AC 3 / Um 1.1 [kV]
Frequency:50 [Hz]
Number of phases :3
Vector group:Dyn11
Max. ambient temperature :40°C
Max. average temperature rise (Oil/Winding):60 / 65 [C/C]
Surface treatment:Painted, RAL 7033 ISO 12944 C3-M (Medium)
Altitude (a.s.l.) :<1000 [m]
Location :Indoor/Outdoor
Standards:IEC 60076
Impedance :4(+/-10%) [%]
No load losses 950(+15%) [W]
Load losses at 75 °C :4100(+15%) [W]
Length:1400 [mm]
Width:950 [mm]
Height:1400 [mm]
Oil Weight :260 [kg]
Total weight :1180 [kg]
Tank construction :Corrugated Wall, Hermetically sealed
Cooling :ONAN
Core Steel Type :Grain oriented electrical steel
High voltage winding conductor material :Cu (Copper)
Low voltage winding conductor material:Cu (Copper)
