Showing 281–300 of 1093 results
- Extractor Fans, Industrial Materials
4Inch Vents 100mm D Axial Fans
Axial fans for exhaust ventilation
Maximum airflow: 95 m 3/h
Sound pressure level LpA at 3 m: 34 dB(A)
Motor type: AC
Casing material: PlasticConnected air duct size : mm 100
Minimum supply voltage : V 220
Maximum supply voltage : V 240
Power supply frequency : Hz 50/60
Rated power : W 14
Unit current : A 0.085
Maximum airflow m3/h 95
Sound pressure level LpA at 3 m dB(A) 34
Weight : kg 0.58
Ambient air temperature min : °С 1
Ambient air temperature max : °С 40
Ingress protection rating : – IP34Application
• Permanent or periodic exhaust and supply ventilation of kitchens, garages, workshops and residential premises.
• For mounting in windows.SKU: EHQ5UJ88 - Flexible Cables, Wires & Cables
4mm 3 Core Multi Strand Flexible Copper Conductor Cable
Conductor Size: 4 sq.mm
No of Core: 3 Core
Color : Black
Conductor Material: Copper Flexible Cable
Material Shape: Round Wire
Conductor Type: Multi-Strand Flexible Copper Conductor
Sheath Insulation Type: PVC
Insulation Color: Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink…
Temperature Range: -30 – 70℃
Nominal Voltage:300/500V, 450/750VHigh strength
Large current carrying capacity
Good centenary property and wear-resistance
Anti-crush and corrosion-proof with simple structureSKU: EH57Z5T4 - Flexible Cables, Wires & Cables
4mm 4 Core Multi Strand Flexible Copper Conductor Cable
Conductor Size: 4 sq.mm
No of Core: 4 Core
Color : Black
Conductor Material: Copper Flexible Cable
Material Shape: Round Wire
Conductor Type: Multi-Strand Flexible Copper Conductor
Sheath Insulation Type: PVC
Insulation Color: Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink…
Temperature Range: -30 – 70℃
Nominal Voltage:300/500V, 450/750VHigh strength
Large current carrying capacity
Good centenary property and wear-resistance
Anti-crush and corrosion-proof with simple structureSKU: EH57Z5T4-1 - PVC- PVC Cables, Wires & Cables
4mm x 4 cores STD CU PVC/PVC Insulated Electric Power Cable
4 Cores Power Cable (PVC Insulated) Parameter
Cross-sectional Area (mm²):4×4.0
Diameter of wire (N/mm):7/0.85
Average overall diameter (mm):17.1
Reference weight (kg/km):454
Conductor Resistance (Ω/km) 20℃ Max:4.61
Conductor: Cu
Insulation: PVC (Polyvinyl Chloride)
Sheath: PVCDescription of 4 Cores Power Cable (PVC Insulated)
Rated Temperature: 70℃
Rated Voltage: 600/1000V
Reference Standard: GB/T12706, IEC60502, BS6346
Shaped stranded copper conductors
Flame retardant insulated with PVC compound
PVC bedded
Flame retardant PVC sheathed overall
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)SKU: EHQ6T5SN - Conduit Boxes, Fittings

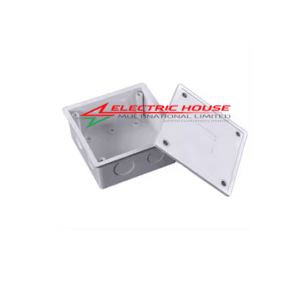

4×4 Adaptable PVC Knock-out Conduit Box
Product Feature
High quality with high strength.
Price is more competitive.
Wide size ranges of our products.
Protects wire and cable from easy damage
Shape: Square
Material:Fireproof PVC
Color: White
Waterproof, dust proof, and corrosion-resistantSKU: EHA97EC8 - Adaptable Boxes, Fittings
4×4 Inch PVC Adaptable Enclosure Outdoor Junction Box IP56
Brand: Aries
Size: 4×4 Inch, 100mm² x 100mm²
Color:Lite Grey
Material:Plastic PVC
Usage: Adaptable Enclosure Outdoor Junction Box Weatherproof
Knock out points: 20mm², 25mm², 32mm²
Unit of Measure:Piece
Mounting Type: Surface Mounting
IP56 RatedSKU: EH6XD8NF - HVAC Accessories, Industrial Materials
5 Meter Flexible Duct – High-Quality PVC Ventilation Duct
Technical Specifications
Material: PVC
Length: 5M (16.4 ft)
Diameter: Customizable (inches)
Thickness: 0.35 mm²
Color: Standard Orange
Temperature Range: -20°C to 80°C
Working Pressure: 3000 Pa
Connection Type: Rope (Standard)
Compliance: Flexible Duct Production & Quality StandardSKU: n/a - Cable Extension Sockets, Switches & Sockets
50 Meters SMJ Heavy Duty Industrial Extension Cable Reel
Specification: Details
Rated Voltage: 220–240V AC
Maximum Load (Unwound): Up to 13A / 3120W
Maximum Load (Wound): Up to 5A / 1200W (to avoid overheating)
Cable Length: 50m
Sockets: 4 UK-style sockets
Cable Type: 1.25mm² or 1.5mm² 3-core flex
Plug Type: UK 3-pin BS1363 plug
Fuse Rating: 13A BS1362
Drum Material: Impact-resistant thermoplastic or steel
Certifications: CE, BS EN 61242 compliantSKU: n/a - Industrial Materials, Transformer
500 kVA – 11KV Oil-Filled Power Distribution Transformer 3 Phase
Product name: Liquid-Filled Ground mount Transformer; 3PH, 500 kVA, HV 11000D , LV 400yn
Country of origin : Turkey
Rated power: 500 [kVA]
Insulation Liquid : Mineral Oil (TAURUS)
High voltage: 11000 [V]
High voltage tappings (DETC):+2 / -2 x 2.5%
Low voltage at no load 400 [V]
High voltage insulation level: LI 75 / AC 28 / Um 12 [kV]
Low voltage insulation level: LI – / AC 3 / Um 1.1 [kV]
Frequency :50 [Hz]
Number of phases :3
Vector group :Dyn11
Max. ambient temperature :40 °C
Max. average temperature rise (Oil/Winding):60 / 65 [C/C]
Surface treatment :Painted, RAL 7033 ISO 12944 C3-M (Medium)
Altitude (a.s.l.) :<1000 [m]
Location :Indoor/Outdoor
Standards :IEC 60076
Impedance :4(+/-10%) [%]
No load losses:1350(+15%) [W]
Load losses at 75 °C: 7200(+15%) [W]
Length: 1265 [mm]
Width: 935 [mm]
Height:1215 [mm]
Oil Weight:285 [kg]
Total weight:1430 [kg]
Tank construction :Corrugated Wall, Hermetically sealed
Cooling :ONAN
Core Steel Type: Grain oriented electrical steel
High voltage winding conductor material :Cu (Copper)
Low voltage winding conductor material: Cu (Copper)SKU: EHAD3617 - Industrial Materials, Transformer
500 kVA – 33KV Oil-Filled Power Distribution Transformer 3 Phase
Product name :Liquid-Filled Groundmount Transformer; 3PH, 500 kVA, HV 33000D , LV 400yn
Country of origin :Turkey
Rated power: 500 [kVA]
Insulation Liquid : Mineral Oil (TAURUS)
High voltage: 33000 [V]
High voltage tappings (DETC): +2 / -2 x 2.5%
Low voltage at no load 400 [V]
High voltage insulation level: LI 170 / AC 70 / Um 36 [kV]
Low voltage insulation level: LI – / AC 3 / Um 1.1 [kV]
Frequency : 50 [Hz]
Number of phases :3
Vector group :Dyn11
Max. ambient temperature : 40°C
Max. average temperature rise (Oil/Winding): 60 / 65 [C/C]
Surface treatment: Painted, RAL 7033 ISO 12944 C3-M (Medium)
Altitude (a.s.l.) :<1000 [m]
Location :Indoor/Outdoor
Standards :EC 60076
Impedance :4.5(+/-10%) [%]
No load losses: 1350(+15%) [W]
Load losses at 75 °C :7200(+15%) [W]
Length: 1350 [mm]
Width: 1000 [mm]
Height: 1500 [mm]
Oil Weight: 355 [kg]
Total weight: 1610 [kg]
Tank construction: Corrugated Wall, Hermetically sealed
Cooling: ONAN
Core Steel Type: Grain oriented electrical steel
High voltage winding conductor material: Cu (Copper)
Low voltage winding conductor material: Cu (Copper)SKU: EHAIEL5F - Extractor Fans, Industrial Materials
500mm Industrial Cased Axial Extractor Fan
Features
Industrial extraction fans with safety grill
Airflow direction from motor to impeller
Powder coated steel wire safety guard
Square design
100% Copper winding motor
Metal body and blades
Very powerful fan
Brand new and boxed
Single phase
UK brand
Quick dispatchSize (mm) inner diameter 20″ Inches 500mm
(m3/h) – 8770
RPM – 1425
Wattage – 867
Noise dB – 67
Voltage – 220-230(V)
Frequency Hz, 50(Hz)
Current(A) – 3.6
Pressure(pa) – 150
Capacitor,F – 10
Weight 72kgSKU: EHOKPASL - Cable Ladder, Cable Management Systems, Industrial Materials
500mm x 100mm Galvanized Cable Ladder 3 Meters Length
Cable Ladder, Cable Management Systems, Industrial Materials500mm x 100mm Galvanized Cable Ladder 3 Meters Length
Features:
Type: Ladder Type Cable Tray
Structure: 2 side rungs for the 3 meters cable ladder
Middle Rung Design: Middle rungs with holes
Thickness: 1/3mm
Surface: HDG, Electro galvanized powered coating
Application: Commercial/Industrial
Width: 500mm
Height:100mm
Length:300mmSKU: EHN59PF2-1-1-1 - Cable Management Systems, Cable Tray, Industrial Materials
500mm X 100mm Heavy Duty Perforated Galvanized Cable Trays
Cable Management Systems, Cable Tray, Industrial Materials500mm X 100mm Heavy Duty Perforated Galvanized Cable Trays
Product type: Cable Trays
Material: Galvanized
Surface Treatment: Pre-galvanized coating
Color:Grey/Silver
Size: Width 500mm
Side rail Height: 100mm
Length: 3000mm
Thickness: 1/2mm
Certification: ISO9001/CCC/CE/UL/CUL
Used: Mast installation, Cabling for industrial areas, High rise buildings, Shopping mall etc.SKU: EH3GDI72-7-3-1 - Cable Management Systems, Cable Tray, Industrial Materials
500mm X 50mm Heavy Duty Perforated Galvanized Cable Trays
Cable Management Systems, Cable Tray, Industrial Materials500mm X 50mm Heavy Duty Perforated Galvanized Cable Trays
Product type: Cable Trays
Material: Galvanized
Surface Treatment: Pre-galvanized coating
Color:Grey/Silver
Size: Width 500mm
Side rail Height: 50mm
Length: 3000mm
Thickness: 1/2mm
Certification: ISO9001/CCC/CE/UL/CUL
Used: Mast installation, Cabling for industrial areas, High rise buildings, Shopping mall etc.SKU: EH3GDI72-5 - Cable Management Systems, Industrial Materials, Wire Mesh Cable Tray
500mm X 50mm Wire Mesh Cable Trays 3 Meters Length
Cable Management Systems, Industrial Materials, Wire Mesh Cable Tray500mm X 50mm Wire Mesh Cable Trays 3 Meters Length
Product type: Wire Mesh Cable Trays
Description: Mesh Cable Tray Electro Zinc
Coating: Electro Zinc
Material: Metallic
Size: Width 500mm
Side rail Height: 50mm
Length (m) 3
Thickness: 1/2mm
Used: routing and supporting power, data, and communication cables in industrial, commercial, and residential setupsSKU: EHR6VFEO-1-1 - Armored XLPE Cables, Wires & Cables

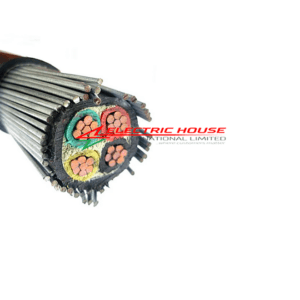

50mm 4 Core Armored Cable Sol CU PVC SWA PVC | Per Meter
No. Cores:4
Conduct or Cross Section Area (mm²):50
Cable Cross Section Area (mm²): 803.84
Actual Armour Cross Section Area (mm²): 90
Overall Diameter (mm): 32
Gland Size:32
Cleat Size:14
Conductor: Class 2 stranded copper conductor
Insulation: XLPE (Cross-Linked Polyethylene)
Bedding: PVC (Polyvinyl Chloride)
Armour: SWA (Steel Wire Armour)/ AWA (Aluminium Wire Armour)
Sheath: PVC (Polyvinyl Chloride)
Voltage: 1-35KV
Conductor: CU
Insulation: XLPE/PVCSKU: EHADO9UJ - Cable Lugs & Glands, Industrial Materials
50mm Double Compression Weatherproof Brass Cable Gland IP66
Cable Lugs & Glands, Industrial Materials50mm Double Compression Weatherproof Brass Cable Gland IP66
Material: Brass
Gland Size: 50 mm
Cable Type: Steel Wire Armour
Armour Clamping: Three Part (With Lock Nut)
Finish: Plain Brass or Nickel Plated
Seal Material: Thermoplastic Elastomer
Sealing Area: Outer Sheath
IP Rating: IP66SKU: EHB1582Q
