The Indelec Thunder Arrestor is a high-performance lightning protection device designed to safeguard electrical systems from lightning strikes and power surges. Known for its advanced technology, it effectively diverts lightning energy to the ground, protecting equipment and structures from damage. Ideal for industrial, commercial, and residential applications, the Indelec Thunder Arrestor ensures reliable surge protection in high-risk areas. Optimized keywords: Indelec thunder arrestor, lightning protection, Indelec lightning arrestor, surge protection device, electrical surge protection, lightning energy diversion, and industrial lightning protection
Thunder Arrestor
Showing all 8 results
- Industrial Materials, Thunder Arrestor
Indelec Digital Flash Lightning Counter
Dimensions (mm)127 x 147 x 95 x 42
Application
Lightning Counter Tester
Ref P8015
Reference P8011
Characteristics
Minimal detectable current I d 1 kA
Maximal detectable Current I max 100 kA
Minimum current sensitivity(id/3) I nd 333 A
Protection Class IP 67
Net Weight W 0.700 kg
Operating principles
Display Digital
Digits 6
Recording: By induction while lightning current pass through doxn conductor
On‐site testing capabilities Proprietary tester ref. P8015
Maintenance Replaceable lithium batteries
Warranty 18 monthsSKU: EHHQ8AO4 - Industrial Materials, Thunder Arrestor
Indelec Prevectron® 2 S60 Early Steamer Emission Air Terminal
Efficiency ΔT 25 µs
Standard deviation ESE / Single Rod -σ σPDA < 0.8 σPTS
Lightning current withstanding test (10/350µs)
Iimp 100kA (normative test)
Net Weight: 2.208 kgOperating principles
Detection of download leader
Continuous measuring of electric field gradient (ΔE/Δt)
Upward streamer emission Sparking by High Voltage Impulses
Internal circuits 2 independent and redundant circuits
Central rod
Full electrical continuity 200mm² section – Nickel-plated Copper
Metal housing Stainless Steel, Electromagnetic shielding
On-site testing capabilities Proprietary testerMaintenance Replaceable modules
Warranty 18 monthsSKU: EH3S6YC7 - Industrial Materials, Thunder Arrestor
Indelec Prevectron® 3 S10 Early Steamer Emission Air Terminal
Reference P1503
Characteristics
Efficiency ΔT 10 μs
Standard deviation ESE / Single
Rod σ σ PDA < 0,75 σ PTS
Lightning current withstanding
test (10/350μs) I imp 100kA (normative test)
Max. current withstanding test I max 200 kA (Unicamp)
Net Weight P 2.000 kg
Operating principles
Detection of downward leader Continuous measuring of electric field gradient
(ΔE/Δt)
Upward streamer development conditions Patented OPTIMAX ® technology optimizing the
streamer development conditions
Upward streamer emission Sparking by High Voltage Impulses
Internal circuits 2 independent and synchronised modules
Central rod Full electrical continuity
200mm² section – Nickel plated Copper
Metal housing Stainless Steel 316, Electromagnetic shielding
On‐site testing capabilities Proprietary tester
Maintenance Replaceable modules
Warranty 5 years
Mechanical specifications
Fixing on pole M20 Thread
Down conductor connection Specific clamp ref P6500 (included)
Packaging
Dimensions 438 x 228 x 220 mm
Contents Prevectron®3, Down conductor clamp, Hex key
Gross Weight 3.750 kg
Environmental sustainability 100% recyclable
Certifications
NF C 17 102:2011, Annex C Bureau Veritas certificate N°6275241/2/1/5
Qualifoudre Ineris certificate N° N°051166662001
ISO 9001 : 2015 (Quality System) Bureau Veritas certificate
CE Marking Certificate of Conformity N°IND‐CE‐21092015‐E
Underwriter Laboratories (UL) UL Certified E478687
Rostechnadzor (RTN Russia) N° RRS 00‐05003
Eco –label AFAQ N°1335.2 11/2014 CertificateSKU: EH4U8562 - Industrial Materials, Thunder Arrestor
Indelec Prevectron® 3 S25 Early Steamer Emission Air Terminal
Reference P1513
Characteristics
Efficiency ΔT 25 μs
Standard deviation ESE / Single
Rod σ σ PDA < 0,65 σ PTS
Lightning current withstanding
test (10/350μs) I imp 100kA (normative test)
Max. current withstanding test I max 200 kA (Unicamp)
Net Weight P 2.300 kg
Operating principles
Detection of downward leader Continuous measuring of electric field gradient
(ΔE/Δt)
Upward streamer development conditions Patented OPTIMAX ® technology optimizing the
streamer development conditions
Upward streamer emission Sparking by High Voltage Impulses
Internal circuits 3 independent and synchronised modules
Central rod Full electrical continuity
200mm² section – Nickel plated Copper
Metal housing Stainless Steel 316, Electromagnetic shielding
On‐site testing capabilities Proprietary tester
Maintenance Replaceable modules
Warranty 5 years
Mechanical specifications
Fixing on pole M20 Thread
Down conductor connection Specific clamp ref P6500 (included)
Packaging
Dimensions 438 x 228 x 220 mm
Contents Prevectron®3, Down conductor clamp, Hex key
Gross Weight 4.050 kg
Environmental sustainability 100% recyclable
Certifications
NF C 17 102:2011, Annex C Bureau Veritas certificate N°6275241/2/1/4
Qualifoudre Ineris certificate N° N°051166662001
ISO 9001 : 2015 (Quality System) Bureau Veritas certificate
CE Marking Certificate of Conformity N°IND‐CE‐21092015‐D
Underwriter Laboratories (UL) UL Certified E478687
Rostechnadzor (RTN Russia) N° RRS 00‐05003
Eco ‐label AFAQ N°1335.2 11/2014 Certificate
Dimensions (mm)
PREVECTRON 3® TS25
Modular design
DOC166a.VEN‐Rev2SKU: EHY61GZ6 - Industrial Materials, Thunder Arrestor

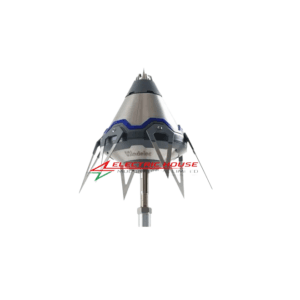

Indelec Prevectron® 3 S40 Early Steamer Emission Air Terminal
Reference P1523
Characteristics
Efficiency ΔT 40 μs
Standard deviation ESE / Single
Rod σ σ PDA < 0.57 σ PTS
Lightning current withstanding
test (10/350μs) I imp 100kA (normative test)
Max. current withstanding test I max 200 kA (Unicamp)
Net Weight P 3.000 kg
Operating principles
Detection of downward leader Continuous measuring of electric field gradient
(ΔE/Δt)
Upward streamer development conditions Patented OPTIMAX ® technology optimizing the
streamer development conditions
Upward streamer emission Sparking by High Voltage Impulses
Internal circuits 3 independent and synchronised modules
Central rod Full electrical continuity
200mm² section – Nickel plated Copper
Metal housing Stainless Steel 316, Electromagnetic shielding
On‐site testing capabilities Proprietary tester
Maintenance Replaceable modules
Warranty 5 years
Mechanical specifications
Fixing on pole M20 Thread
Down conductor connection Specific clamp ref P6500 (included)
Packaging
Dimensions 438 x 228 x 220 mm
Contents Prevectron®3, Down conductor clamp, Hex key
Gross Weight 4.750 kg
Environmental sustainability 100% recyclable
Certifications
NF C 17 102:2011, Annex C Bureau Veritas certificate N°6275241/2/1/3
Qualifoudre Ineris certificate N° N°051166662001
ISO 9001 : 2015 (Quality System) Bureau Veritas certificate
CE Marking Attest report N°IND‐CE‐21092015‐C
Underwriter Laboratories (UL) UL Certified E478687
Rostechnadzor (RTN Russia) N° RRS 00‐05003
Eco ‐label AFAQ N°1335.2 11/2014 CertificateSKU: EHT8GND8 - Industrial Materials, Thunder Arrestor

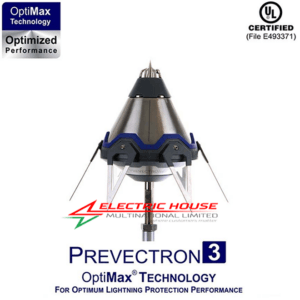

Indelec Prevectron® 3 S50 Early Steamer Emission Air Terminal
Reference P1533
Characteristics
Efficiency ΔT 50 μs
Standard deviation ESE / Single
Rod σ σ PDA < 0.53 σ PTS
Lightning current withstanding
test (10/350μs) I imp 100kA (normative test)
Max. current withstanding test I max 200 kA (Unicamp)
Net Weight P 3.300 kg
Operating principles
Detection of downward leader Continuous measuring of electric field gradient
(ΔE/Δt)
Upward streamer development conditions Patented OPTIMAX ® technology optimizing the
streamer development conditions
Upward streamer emission Sparking by High Voltage Impulses
Internal circuits 4 independent and synchronised modules
Central rod Full electrical continuity
200mm² section – Nickel plated Copper
Metal housing Stainless Steel 316, Electromagnetic shielding
On‐site testing capabilities Proprietary tester
Maintenance Replaceable modules
Warranty 5 years
Mechanical specifications
Fixing on pole M20 Thread
Down conductor connection Specific clamp ref P6500 (included)
Packaging
Dimensions 438 x 228 x 220 mm
Contents Prevectron®3, Down conductor clamp, Hex key
Gross Weight 5.050 kg
Environmental sustainability 100% recyclable
Certifications
NF C 17 102:2011, Annex C Bureau Veritas certificate N°6275241/2/1/2
Qualifoudre Ineris certificate N° N°051166662001
ISO 9001 : 2015 (Quality System) Bureau Veritas certificate
CE Marking Declaration of conformity N°IND‐CE‐21092015‐B
Underwriter Laboratories (UL) UL Certified E478687
Rostechnadzor (RTN Russia) N° RRS 00‐05003
Eco ‐label AFAQ N°1335.2 11/2014 CertificateSKU: EHTB83JY - Industrial Materials, Thunder Arrestor

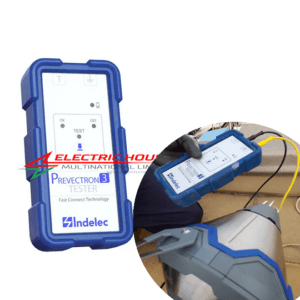

Indelec Prevectron® 3 Tester Fast Connect Technology
Réf. P1590
Weight (kg) 0.415Application The tester has been specially designed for a perfect portability for both installation and routing maintenance purposes.
It is supplied with isolated cables and transport bag. Thanks to its unique “Fast connect technology”, each circuit condition is now tested through a single connection point. Power Four 1.5V AA type batteries.
Warranty 12 monthsTransport bag with INDELEC logo
Indelec « Fast Connect Technology » Tester
Yellow cable + crocodile clip (Earth)
Black cable + plug (Prevectron®3 circuits)SKU: EHRK9J6W - Industrial Materials, Thunder Arrestor

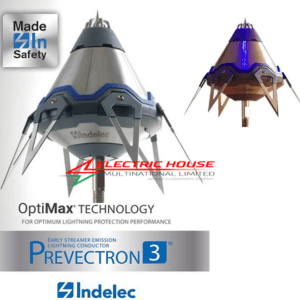

Indelec Prevectron®3 S60 Early Steamer Emission Air Terminal
Reference P1543
Characteristics
Efficiency ΔT 60 μs
Standard deviation ESE / Single
Rod σ σ PDA < 0.44 σ PTS
Lightning current withstanding test (10/350μs) I imp 100kA (normative test)
Max. current withstanding test I max 230 kA (Unicamp)
Net Weight P 3.900 kg
Operating principles
Detection of downward leader Continuous measuring of electric field gradient
(ΔE/Δt)
Upward streamer development conditions Patented OPTIMAX ® technology optimizing the
streamer development conditions
Upward streamer emission Sparking by High Voltage Impulses
Internal circuits 6 independent and synchronised modules
Central rod Full electrical continuity
200mm² section – Nickel plated Copper
Metal housing Stainless Steel 316, Electromagnetic shielding
On‐site testing capabilities Proprietary tester
Maintenance Replaceable modules
Warranty 5 years
Mechanical specifications
Fixing on pole M20 Thread
Down conductor connection Specific clamp ref P6500 (included)
Packaging
Dimensions 438 x 228 x 220 mm
Contents Prevectron®3, Down conductor clamp, Hex key
Gross Weight 5.650 kg
Environmental sustainability 100% recyclable
Certifications
NF C 17 102:2011, Annex C Bureau Veritas certificate N°6275241/2/1/1
Qualifoudre Ineris certificate N° N°051166662001
ISO 9001 : 2015 (Quality System) Bureau Veritas certificate
CE Marking Declaration of Conformity N°IND‐CE‐21092015‐A
Underwriter Laboratories (UL) UL Certified E478687
Rostechnadzor (RTN Russia) N° RRS 00‐05003
Eco ‐label AFAQ N°1335.2 11/2014 CertificateSKU: EHGJRE82
