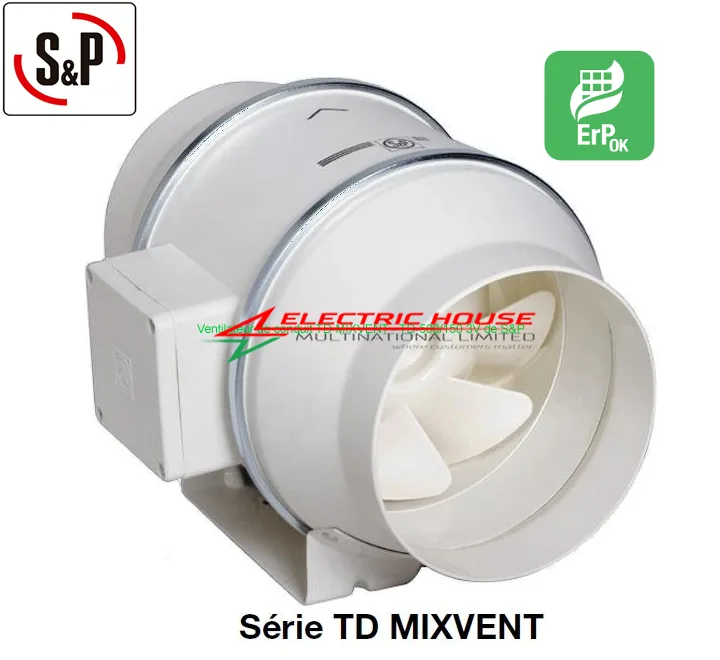

S&P TD-500 150mm Silent Inline Mixed Flow Duct Fan

Soler & Palau TD500 Mixvent Series Inline Duct Fan – 150mm Inlet/ Outlet – Airflow 430/ 580m3/hr

The S&P MIXVENT-TD series of in-line duct fans offer one of the most comprehensive and flexible in-line duct ventilation system solutions on the market today.
They are known for their quietness.

All MIXVENT-TD fans, combine a multitude of features including a high efficiency mixed flow impeller; powerful 3 speed motor; a high airflow and low noise performance all within an extremely compact physical size. Unique to the MIXVENT-TD fans is the facility to remove the motor / impeller assembly from the fan body without disturbing the adjacent duct work. This feature also enables a ducted exhaust system to be converted in to a supply air system with ease.

Manufacturer Soler & Palau
Design duct
Diameter: 150mm
Speed [min-1] 2500
Air Flow Volume [m3/h] 580
Current [A] 0.22
Current [A] 0,22/0,19
Power [W] 50
Output [W] 50/44
Voltage 230V
Duct diameter [mm] 150
Min. temperature [°C] -20
Max. temperature [°C] 40
Protection IP IP44
Noise [dB(A)] 33
Weight [kg] 2.7
